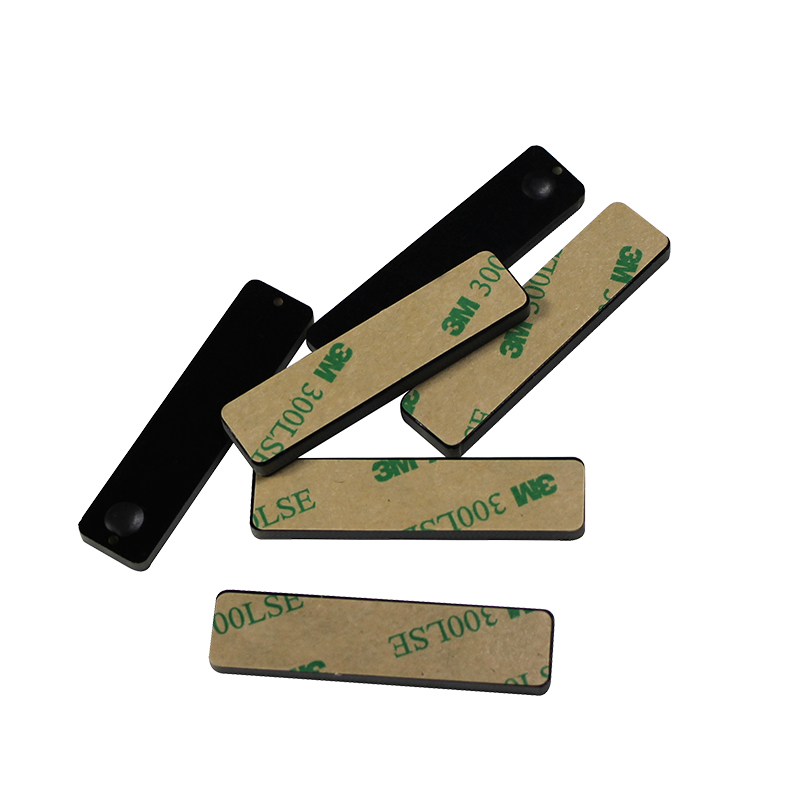

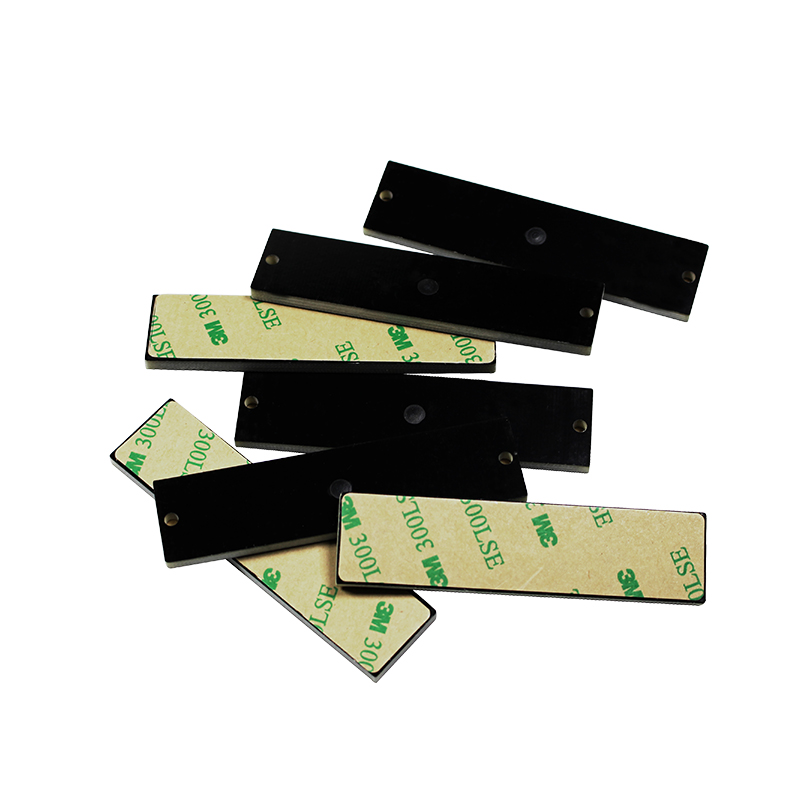

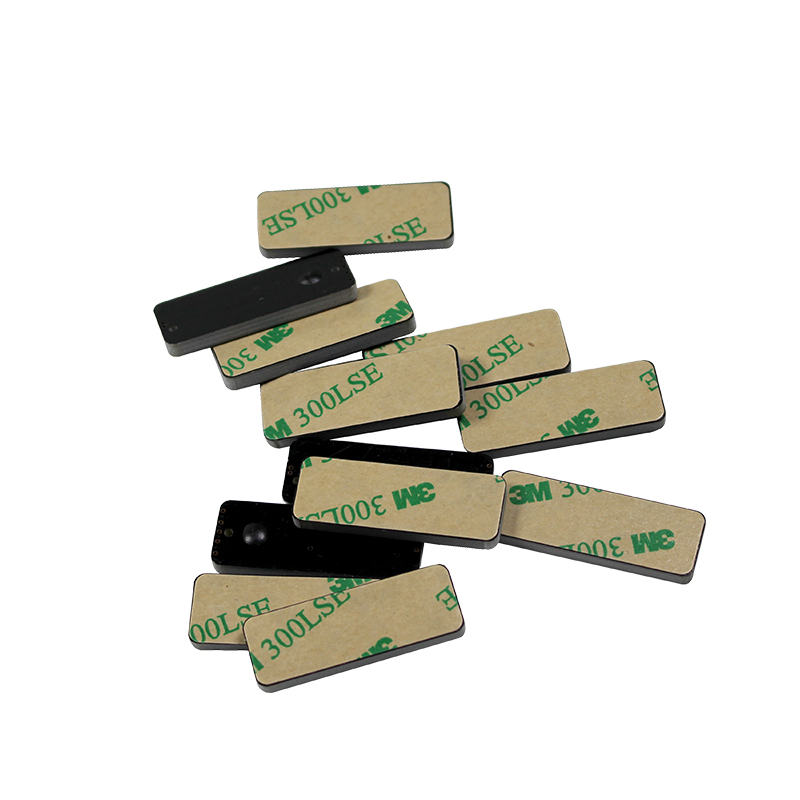

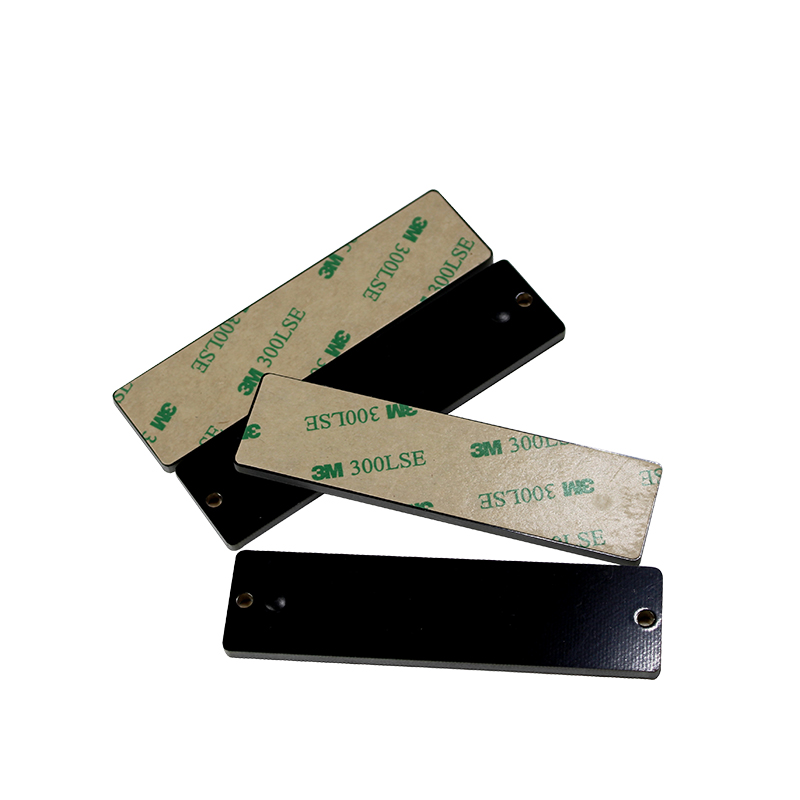

Product Name:0-5Meter RFID On Metal RFID PCB Tag: Product Model:NR-K5312

Cantact Us:

Model	NR-5312
Protocol	EPC Class1 Gen2; ISO18000-6C
frequency	860-960MHz
Chip	Ucode 9 customized
memory	Ucode 9 :EPC 96-bits TID 96bits Kill password 32bits no user
Work	Read and Writer
memory lead time	50 years
Warranty	1year
Material	ABS
Color	black,grey,red,blue or customized
Size	53*12mm
Temperature	-25℃~ +85℃
Storage temperature	-30℃~ +110℃
Save humidity	5%～95%
Adhesive	3M 300LSE
weight	1g
package	500pcs/bag
Alcohol test	95%Concentration alcohol test passed
High and low temperature alternating test	-40℃ to +150℃ 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test
RoHS	yes
IP degree	IP65
Handheld reader on metal surface (5dbi antenna)	0-5M ( Related to the use environment)
Fixed RFID Reader (12dbi antenna)	0-8M for long-distance by 12dbi fixed reader, if other readers, the reading distance may be different
Polarization direction	Linear Polarization
Text	100% tested it before we send out
