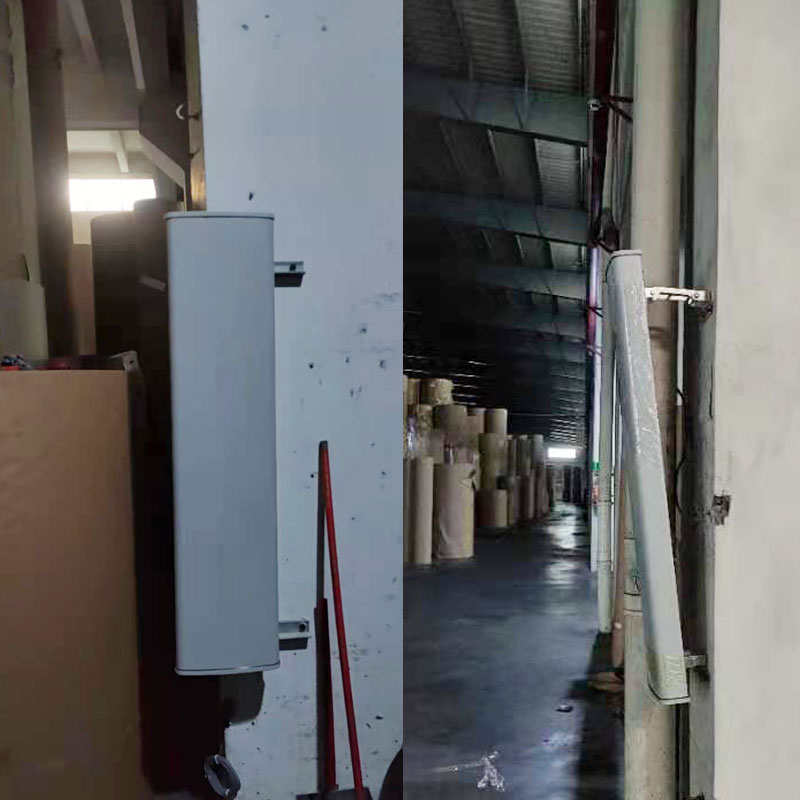

- Product Name:15dbi Passive UHF RFID Antenna for outdoor
- Product Model:
Cantact Us:
- Product Overview
Technical Parameter | |
Frequency | 902MHz~928MHz or 866-868Mhz |
Gain | 15dBi |
Front-to-Rear Ratio | >25dB |
V.S.W.R | ≤1.4 |
Half-Power Angle |
23±2° E angle 75° H angle |
Maximum Power | 100W |
Resistance | 50Ω |
Third Order Intermodulation | <-107dBm |
Polarization Mode | Horizontal |
Connector | N type Female Connector |
Mechanical Tilt | 0°~15° |
Lightning Protection | Grounding |
Dimension | 600mm*290mm*135mm |
Diameter of Derrick | φ40-50MM |
Maximum Wind Resistance | 216(Km/h) |
Weight | 5 kg |
Working Temperature | -40℃ to 70℃ |
