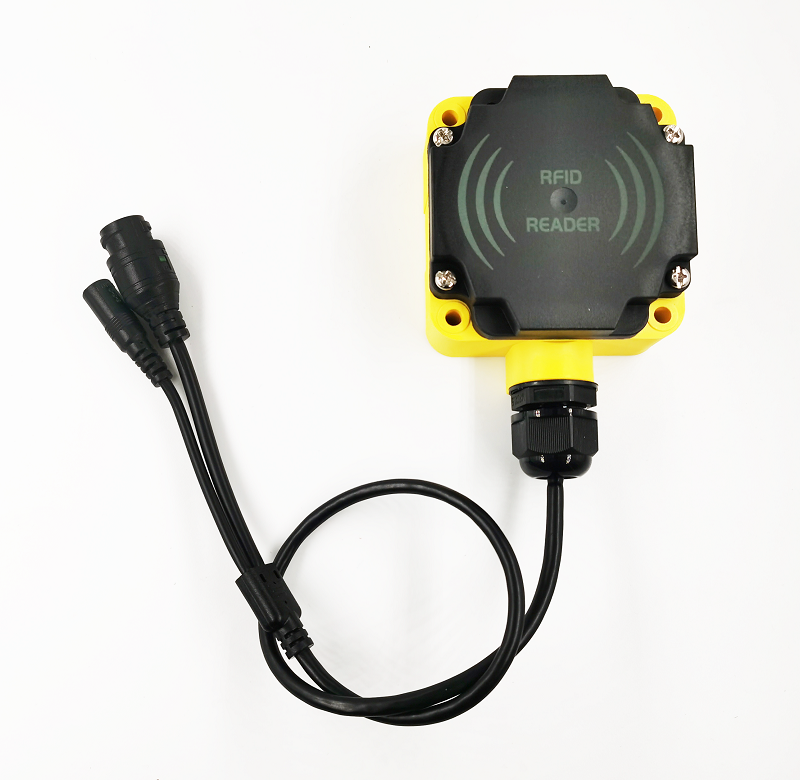

- Product Name:ISO14443A RFID Reader For Industry Production Line NR-R6100
- Product Model:NR-R6100
Cantact Us:
- Product Overview
Technical Parameters | |
Frequency | ISO14443A |
Output power | 220mw |
RF output | 20-26dBm adjustable;50 ohm load |
Power | DC-2.5 |
Communication port | RS232, RS485 or TCP/IP |
Communication rate | Rate 115200bps |
SDK | C#, Java, Android |
Working status display mode | LED indicator (blue, red), buzzer |
Rewrite and Read | |
Read distance | 0-3CM ( the reading distance depend on the RFID Tag's performance) |
Protocol | ISO14443A |
Performance | |
Size | 75*75*40mm |
Equipment power supply | Industrial grade wide voltage design, 7.5-36V DC |
LED indicator | Blue: card reading indicator; red: power indicator |
Weight | 450g |
Protection level | IP67 |
Operating temperature | -20ºC ~60ºC |
storage temperature | -20 ºC~85 ºC |
Working humidity | 5%~95%RH, Non-condensing |
Communication port | |
NR-R6610A | RS232 |
NR-6610B | TCP/IP |
NR-6610C | RS485 |
