Product Name:Andorid 8.1 Keyboard Barcode/QR Scanner Handheld Reader NFC/: Product Model:NR-40L

Cantact Us:

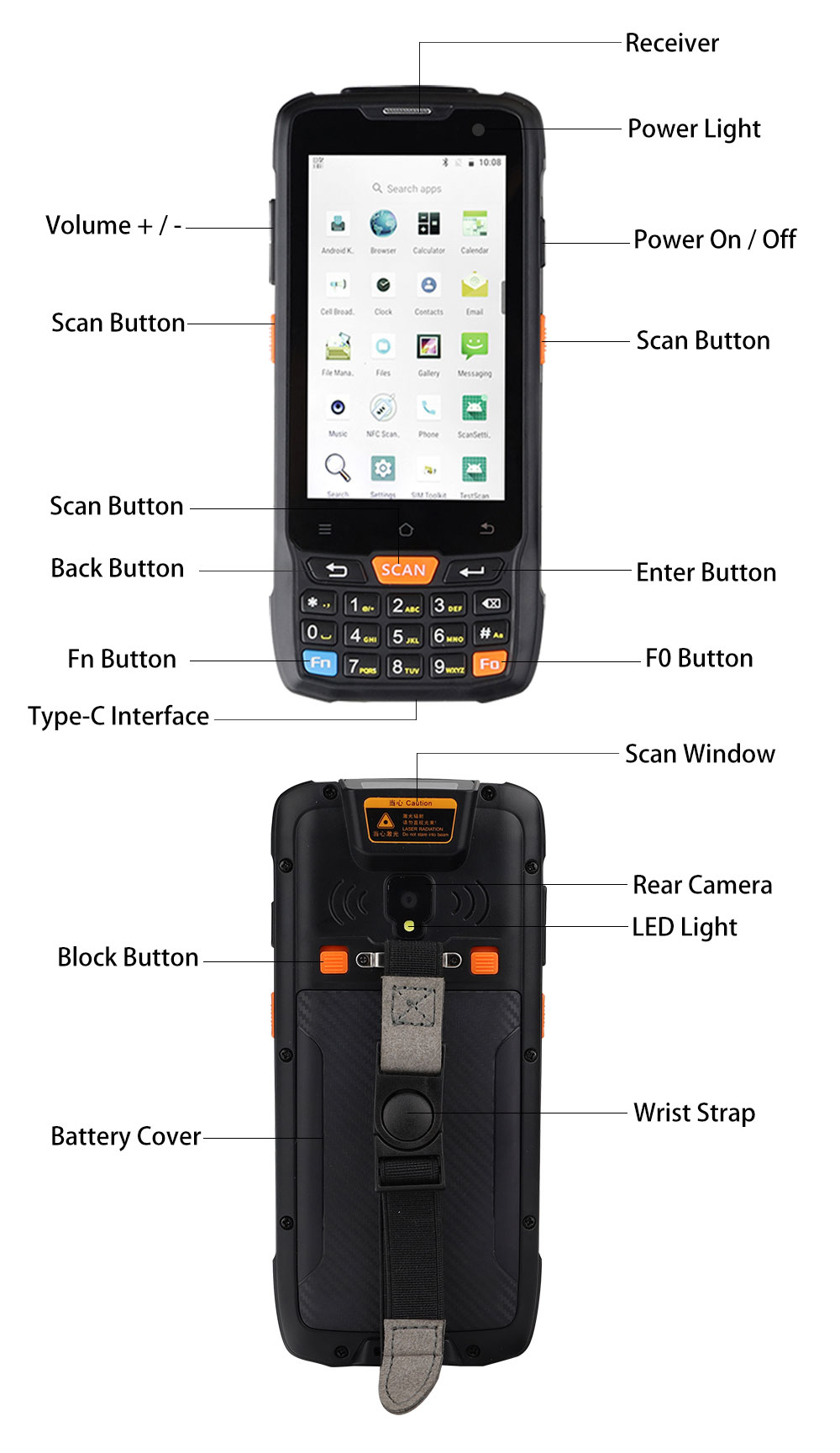

Industrial Handheld Terminal

Water-proof, shock-resistant, dust-proof

4 inch HD touch screen·Quad-core CPU·Android 8.1 OS

hysical parameters

Size	152mm(L)×74mm(W)×17(H)
Weight	260g
Screen	4 inch, 480*800, 16.7M colors
Touch screen	Industrial capacitive touch screen
Battery	Polymer Li-ion battery 4300mAh
	Standby >300 hours
	Working time >12 hours （depends on working condition and internet condition）
	Charging time 2-3 hours（Use cradle charger and type-C cable）
Slot	1pcs SIM slot, 1pcs Micro SD(TF) card slot, support 64GB max.
Port	USB Type-C，Support OTG function ，support fast charging
Audio	Microphone，headphone，1W speaker，support voice call
Keyboard	3pcs TP keyboard+5pcs keyboard on both sides + number keyboard
Sensor	G-sensor, vibration motor
Adaptor	100-240V，50-60Hz；output ：5V，2A

Usage condition
Working temp.	-20^oC --50^oC
Storage temp.	-40^oC -- 70^oC
Ambient humidity	5%RH - 95%RH（non-condensing）
Drop height	1.5 meters cement floor
Rolling test	1000 wheel 0.5 meter rolling （equal to 2000 times dash）
ESD	1000 wheel 0.5 meter rolling （equal to 2000 times dash）
ESD	±15kV air discharge ,±8kV direct discharge
IP rate	IIP66， reach IEC seal standard
Electrostatic protection	±15KV air discharge, , ±6KV contact discharge

Data communication

WLAN	Support IEEE802.11 ac/a/b/g/n protocol (2.4/5G GSM)，
WWAN	GSM：850/900/1800/1900Mhz)
	TD-SCDMA：Band34,Band39
	WCDMA：Band1,Band2,Band5,Band8
	TDD-LTE：Band38,Band39,Band40,Band41
	FDD-LTE：Band1,Band3,Band7
Bluetooth	Bluetooth 4.1（support HS）
GNSS	Support integrated GPS, Beidou, GLONASS,Internal Antenna, support AGPS

Data collection
Camera （ front 5MP for option）
Rear camera	13MP camera, support auto focus , flash light

Barcode collection（for option）
1D barcode scanner	Honeywell N4313 / UE966 /
1D barcode type	UPC/EAN,Code128,Code39,Code93,Code11,
	Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,
	Codabar,MSI,RSS etc.
2D barcode scanner	Zebra SE4710 /MD5600/ Honeywell N3603/ Honeywell N6603
2D barcode type	PDF417, MicroPDF417, Composite, RSS, TLC-39,
	Datamatrix, QR code, Micro QR code, Aztec,
	MaxiCode; Postal Codes: US PostNet, US Planet,
	UK Postal, Australian Postal,
	Japan Postal, Dutch Postal (KIX) etc.
NFC（for option）
frequency	13.56MHz
protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2 etc.
Label standard	M1 card (S50, S70), CPU card , NFC label etc.
Reading distance	2-4cm

LF（for option）

125K RFID 125K module
