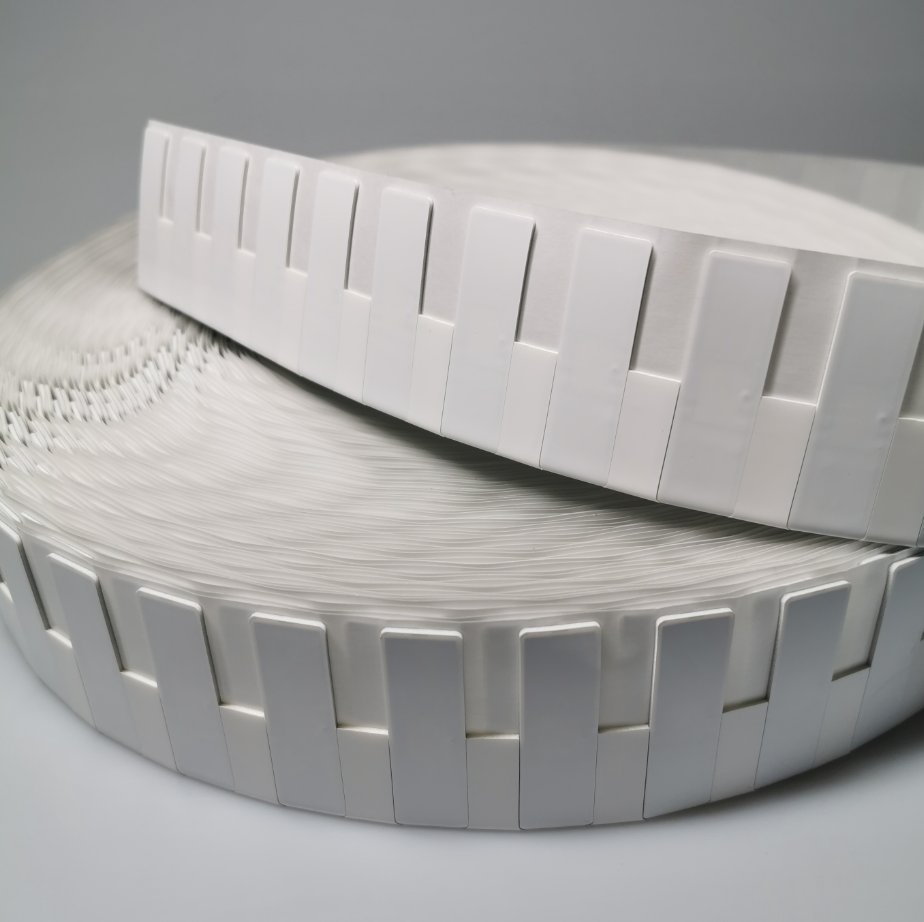

- Product Name:50*15MM UHF Flexible Printable On me
tal RFID Label - Product Model:NR-F5015
Cantact Us:
- Product Overview
Typical Features：
The surface of the product is smooth and flat, without the protruding caused by chip packaging;
Printable LOGO
Can be fixed on metal surface
Suitable for label printer printing, support LOGO and barcode printing
Application：
This flexible printable anti-metal label is compatible with EPC, C1G2 and ISO18000-6C standards. Suitable for use in environments rich in metals and liquids, it can be packaged for any kind of printed labels, barcodes or graphic labels. Its light and thin paper shape makes it easy to stick on curved objects, such as cylinders, pipes, and metal containers. And fixed assets. It is widely used in the fields of product certification, asset tracking, logistics tracking, valuables anti-counterfeiting and medical asset management, improving operational efficiency and inventory management for manufacturers and retailers
The surface of the product is smooth and flat, without the protruding caused by chip packaging;
Printable LOGO
Can be fixed on metal surface
Suitable for label printer printing, support LOGO and barcode printing
Application：
This flexible printable anti-metal label is compatible with EPC, C1G2 and ISO18000-6C standards. Suitable for use in environments rich in metals and liquids, it can be packaged for any kind of printed labels, barcodes or graphic labels. Its light and thin paper shape makes it easy to stick on curved objects, such as cylinders, pipes, and metal containers. And fixed assets. It is widely used in the fields of product certification, asset tracking, logistics tracking, valuables anti-counterfeiting and medical asset management, improving operational efficiency and inventory management for manufacturers and retailers
| Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Working frequency | 902-928MHz |
| Chip | Impinj Monza R6-P |
| Memory | 32-bits User |
| 48-bitsTID | |
| 128-bits EPC | |
| Storage Temp | -40°F to +185°F (-40°C to + 85°C) |
| Working Temp | -40°F to +185°F (-40°C to + 85°C) |
| Weight（roll） | 0.71 kg (500 pcs) |
| Dimensions(mm) | 50(+/- 1) x 15(+/- 0.8) x 1.26(+/- 0.1) |
| Width of Liner | 53(+/- 1)mm |
| Inlay Pitch | 30(+/- 0.8)mm |
| Gap | 25(+/- 0.1)mm |
| R Angle | 1.5(+/- 0.2)mm |
| Print Performance | Excellent |
| Read Rangeon metal | 0-6M by 5dbi handheld reader |
| Read Range onon metal | 0-10M by 9dbi Middle range Fixed Reader |
| Read Range onon metal | 0-15M by 12dbi Long range Fixed Reader |
| Surface Material | White PET |
| Adhesive | PSA |
| Standard Packing | 500pcs/roll |
| I.D. | 3 in (76.2 mm) |
| O.D. | 8 in (203 mm) |
| Printer | Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 |
