Home > PRODUCTS > UHF RFID Reader > Fixed UHF RFID Reader > > ISO18000 6C 4Ports UHF RFID Fixed Reader NR-8604
- Product Name:ISO18000 6C 4Ports UHF RFID Fixed Reader NR-8604
- Product Model:NR-8604
Cantact Us:
- Product Overview
PARAMETERS
| Operating Frequency | 866-868Mhz EU, 902-928Mhz US |
| Protocol | ISO18000-6C (EPC Class1 Gen2) |
| Working Mode | FHSS/Fixed frequency |
| Antenna Port | 4 TNC connector |
| Rf Output | 10dBm~33dBm (@1dBm per step) |
| Reading Range | 0~20m (depends on antenna and tag type) |
| Writing Range | 0~3m (depends on antenna and tag type) |
| Reading Speed | 300pcs/s |
| Communication Port | TCP/IP (Ethernet), RS232/RS485 |

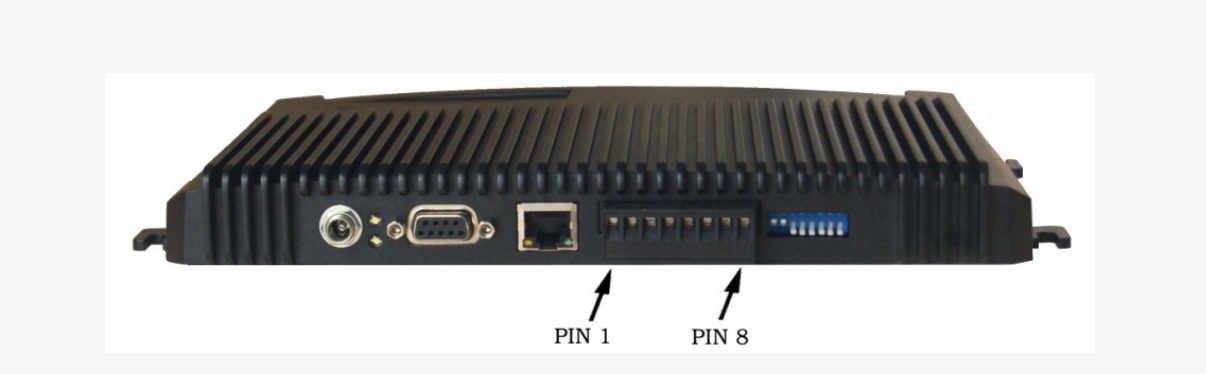

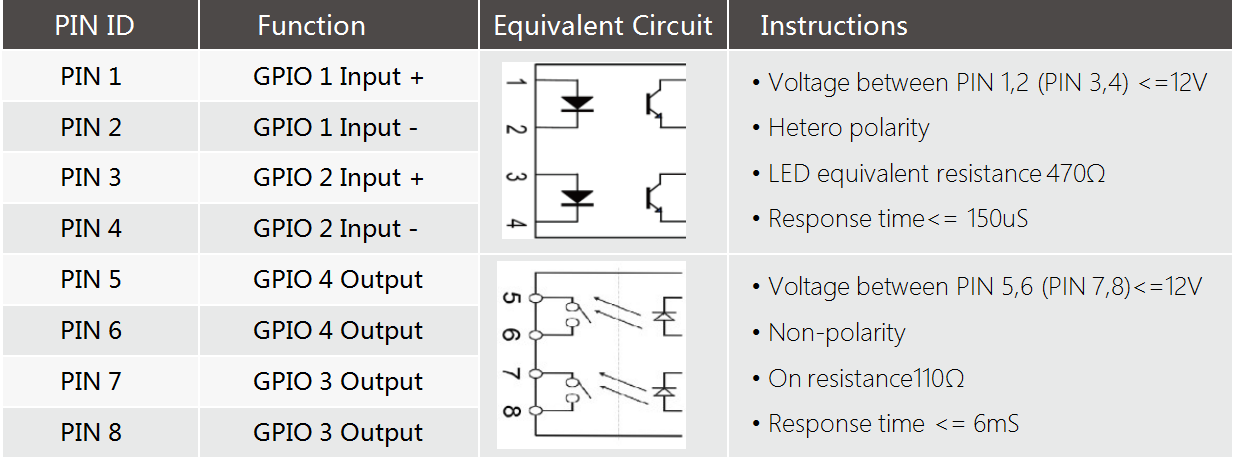

| Io Port | 2 channel relay output, 1channel photoelectric isolation input |
| Power Supply | DC 12V/3A |
| Material | Aluminum alloy |

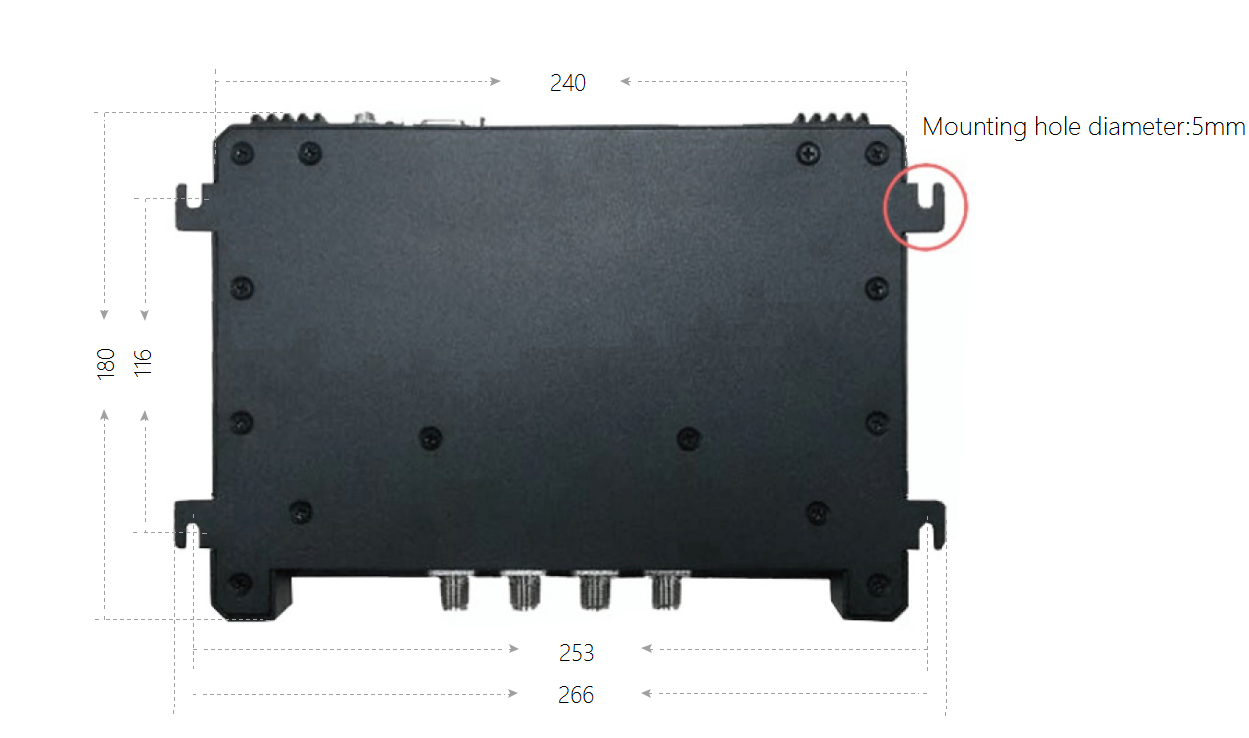

| Dimension | 240mm(L) x 180mm(W) x 28mm(H) |
| Weight | 865g |
| Working Temperature | -20℃~ 65℃ |
| Storage Temperature | -30℃~ 75℃ |
| Humidity | 5%~95% (non-condensing) |
| Waterproof | IP67 |
