- Product Name:250 High temperature UHF Tag ISO18000 6C Gen2 Tag
- Product Model:NR-K4836
Cantact Us:
- Product Overview
250 High temperature UHF Tag ISO18000 6C Gen2 Tag
Functional Specifications
Physical Specification
Reliability Specification
Functional Specifications
| Protocol | EPC Class1 Gen2; ISO18000-6C |
| Frequency | 902-928MHz (Other frequencies available for the same size) |
| Chip | Alien H3 /NXP UCODE 9 |
| Chip memory | EPC 96bits, USER 512bits /128bit EPC |
| Reading distance |
Fixed RFID reader :0-8meter Handheld reader:0-5meter ( work one metal surface) |
| Data saving | 50 years |
| Warranty | 1 year |
Physical Specification
| Main material | Ceramic |
| Color | Black |

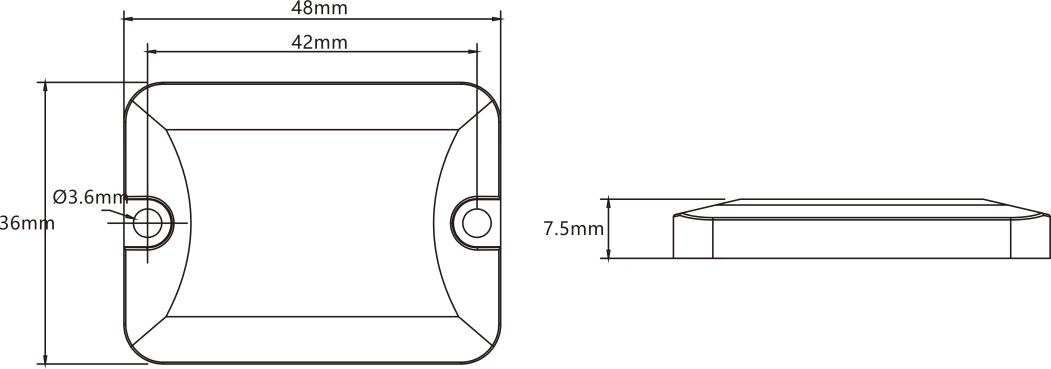

| Size | 48*36 *7.5mm (hole:3.6MM) |
| Working temperature | -60℃~ +2300℃ |
| Storage temperature | -60℃~ +150℃ |
| Storage Humidity | 5%～95% |
| Installation method | screws |
| Weight | 25g/piece |
| Package | 100 per bag |
Reliability Specification
| Drop test | Passed 200 times drop test at 1 meter height |
| Alcohol test | 95% alcohol test passed |
| Gasoline test | No. 92 gasoline wipe passed |
| High and low temperature alternating | -40℃～+95℃100 high and low temperature alternating cycles, a total of 30 consecutive days passed the test |
| Rapid cooling test | After heating at 185 degrees for 1.5 hours, put it in 10 degrees water quickly and accurately, take it out and pass the function test at room temperature |
| RoHS | Pass |
| IP Grade |
IP68 |
